Flight Structures has developed a leading edge Aero-Medical fit out for this aircraft in conjunction with Westpac Rescue-Auckland.

The Leonardo AW169 is a new rotorcraft with leading edge avionics that is ideal for EMS roles. With a spacious cabin there is room for clinical staff to treat patients in flight. We have a full range of products approved, with several more in development at the moment. For a gallery of photos please click here.

AW169 EMS Fitout   Flight Structures has designed a full Aero Medical fitout for both Westpac Rescue Auckland AW169 aircraft.  You can read about the key pieces of equipment on this page or check out our   news page   for more information.

AW169 EMS Fitout

Flight Structures has designed a full Aero Medical fitout for both Westpac Rescue Auckland AW169 aircraft.

You can read about the key pieces of equipment on this page or check out our news page for more information.

RULS (Rotorcraft Utility Loading System)   The RULS was designed around the Zero Lift Principal to ease the workload for crew. The stretcher is in a longitudinal position during flight to enable the best patient care, and rotates to transverse for loading from a stretcher trolley.  The RULS is lightweight and enables hoisting directly onto the stretcher bed.  The RULS is STC Approved.  You can click  here  to see a gallery of photos.

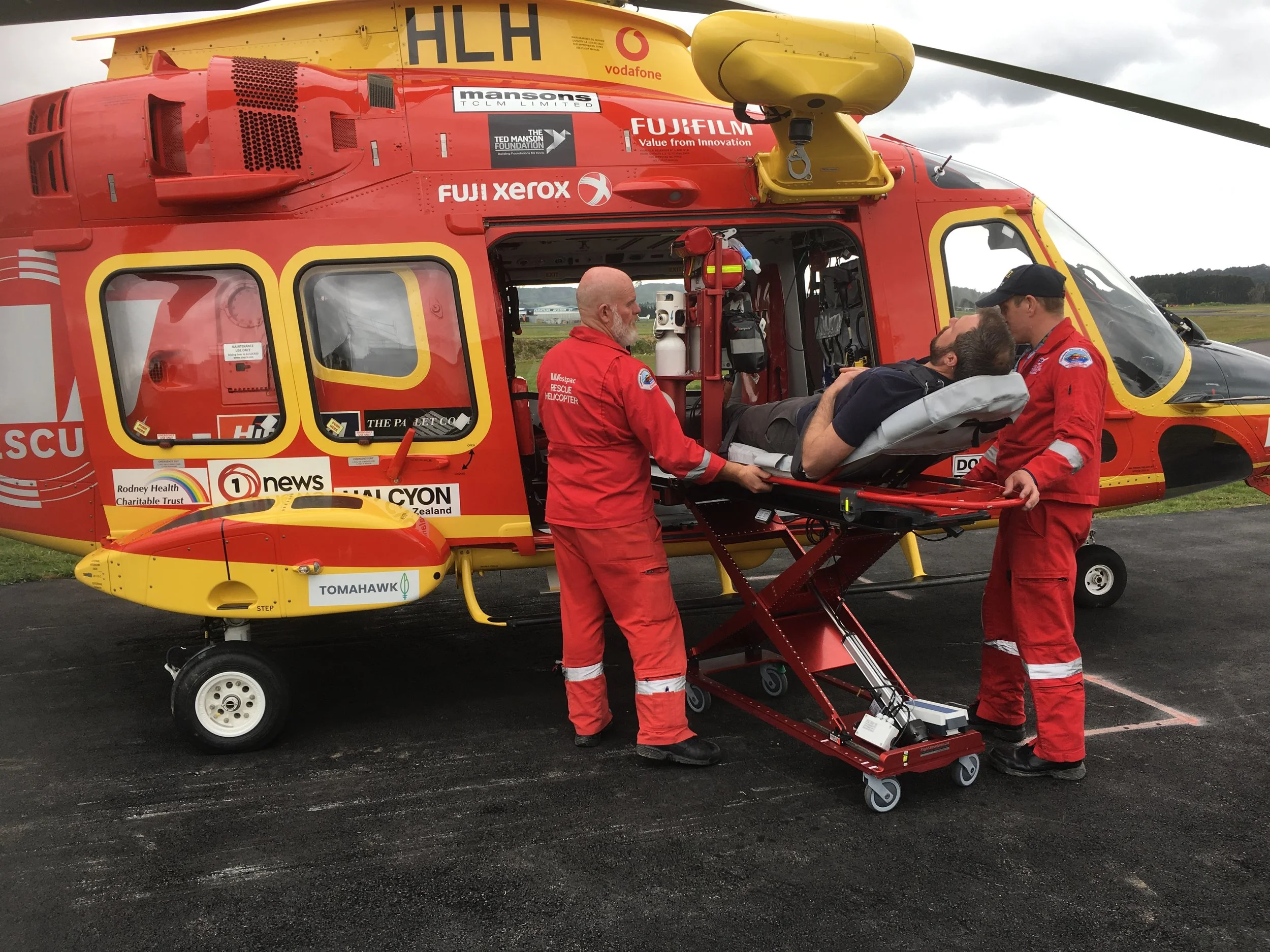

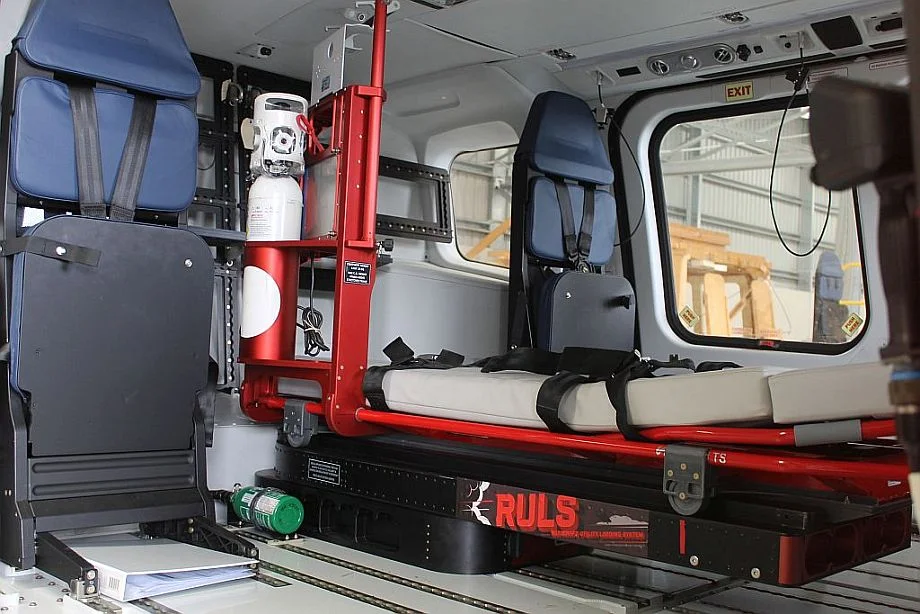

RULS (Rotorcraft Utility Loading System)

The RULS was designed around the Zero Lift Principal to ease the workload for crew. The stretcher is in a longitudinal position during flight to enable the best patient care, and rotates to transverse for loading from a stretcher trolley.

The RULS is lightweight and enables hoisting directly onto the stretcher bed.

The RULS is STC Approved.

You can click here to see a gallery of photos.

Oxygen System   The oxygen bottle storage provides 500 litre capacity with cabin outlets, monitoring and control and two ceiling mounted outlets.  Medical Oxygen is provided by an O2 Bottle remotely stored, with access through an external door.  The Oxygen System is STC Approved.

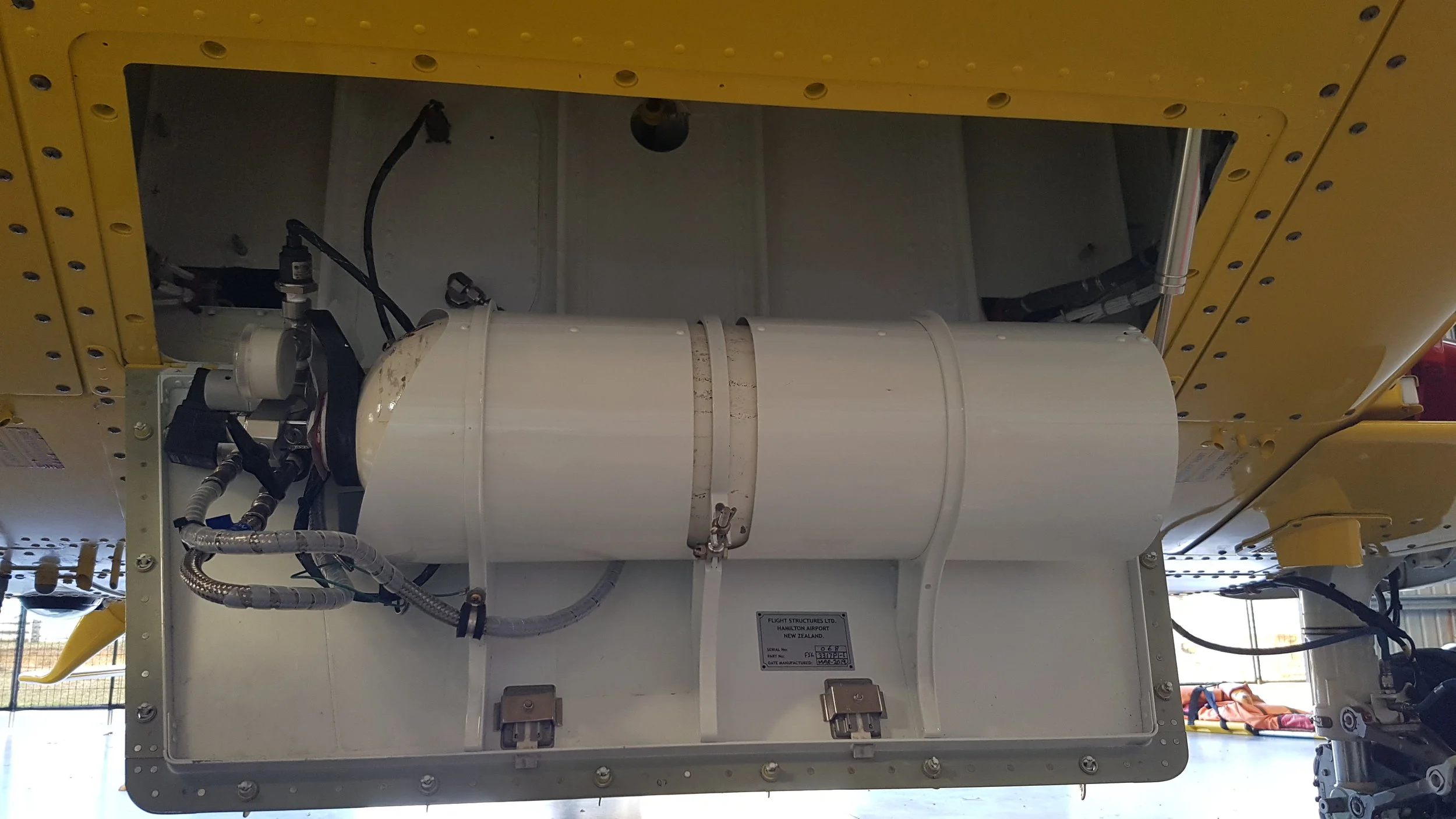

Oxygen System

The oxygen bottle storage provides 500 litre capacity with cabin outlets, monitoring and control and two ceiling mounted outlets.

Medical Oxygen is provided by an O2 Bottle remotely stored, with access through an external door.

The Oxygen System is STC Approved.


Stretcher Bridge   The Stretcher Bridge allows medical crew to view monitors and access equipment in flight and on the ground. The cantilever design means patients can be uploaded to the stretcher without removal of aero medical equipment.

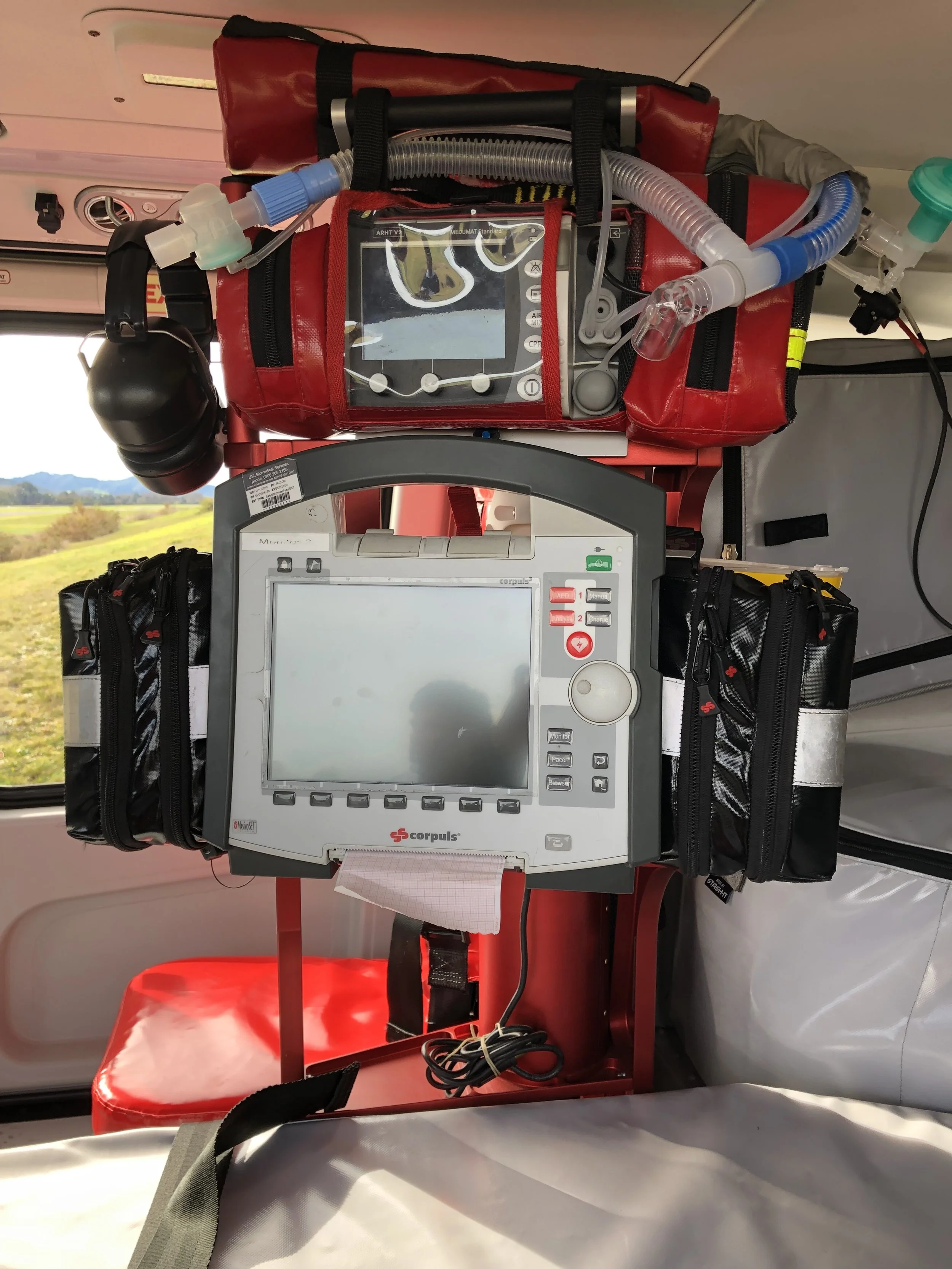

Stretcher Bridge

The Stretcher Bridge allows medical crew to view monitors and access equipment in flight and on the ground. The cantilever design means patients can be uploaded to the stretcher without removal of aero medical equipment.

Rear Storage Racks   This wall mounted rack allows for the safe stowage of equipment at the back of the aircraft.

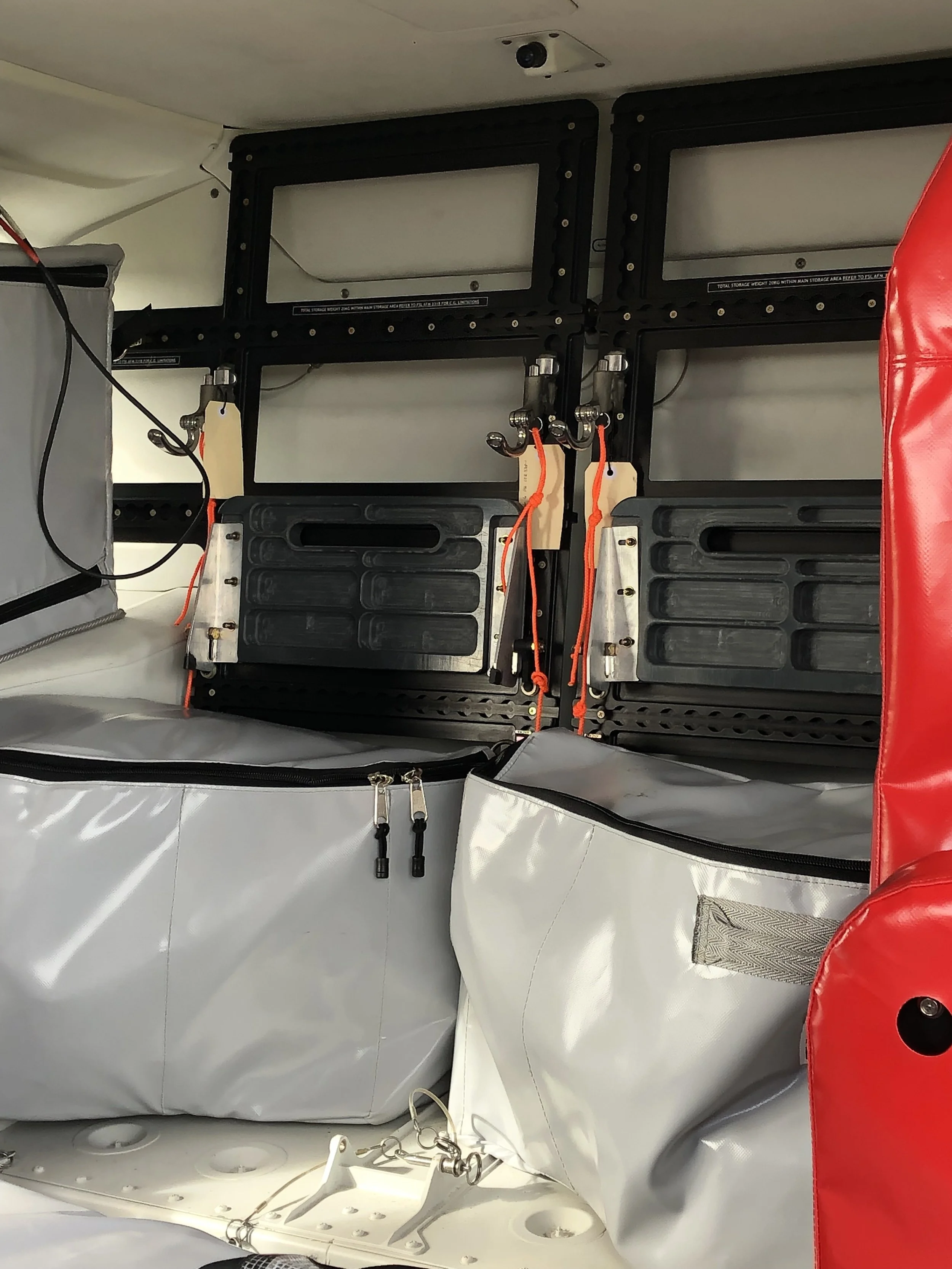

Rear Storage Racks

This wall mounted rack allows for the safe stowage of equipment at the back of the aircraft.

Forward (Freestanding) Storage Racks   This rack enables utility and storage options during patient transfer and hoist operations.

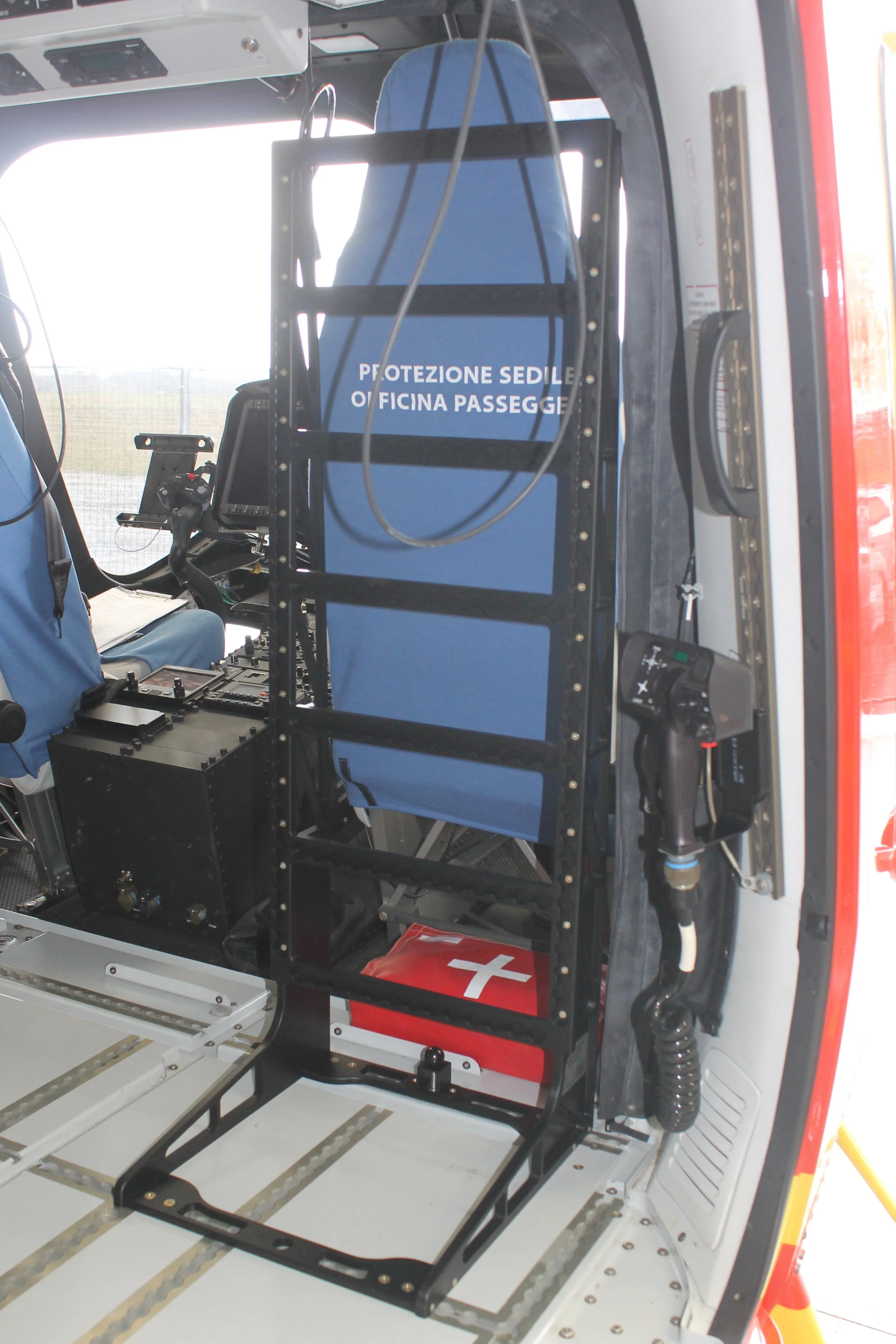

Forward (Freestanding) Storage Racks

This rack enables utility and storage options during patient transfer and hoist operations.
